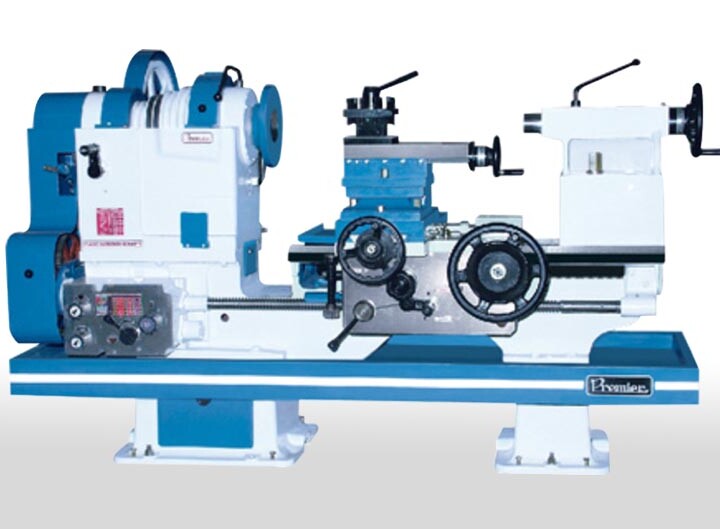

Hi-Cut Lathe Machine

CAPACITY :

	Standard Center height 16” – 405 mm	Optional Center height 18” – 455 mm
Center height	16” -405mm	18” -455mm
Swing over bed	30” -460mm	34” -865mm
Swing over Cross slide	20” -500mm	24” -610mm
Swing in gape	46” -1170mm	50” -1270mm

BED :

Bed Lengh	Admit Between Center
HI-CUT-1 (7’-0” – 2235 mm)	31” – 800 mm
HI-CUT-2 (9’-0” – 2745 mm)	54” -1370 mm
HI-CUT-3 (10’-0” – 3050 mm)	66” -1680 mm
HI-CUT-4 (12’-0” – 3660 mm)	90” -2280 mm
HI-CUT-5 (14’-0” – 4270 mm)	114” -2900 mm
HI-CUT-6 (16’-0” – 4875 mm)	138” -3500 mm
HI-CUT-7 (18’-0” – 5485 mm)	162” -4100 mm
HI-CUT-8 (20’-0” – 6100 mm)	186” -4700 mm
HI-CUT-9 (22’-0” – 6700 mm)	210” -5300 mm
HI-CUT-10 (24’-0” – 7300 mm)	234” -5900 mm
HI-CUT-11 (26’-0” – 8000 mm)	258” -6550 mm
HI-CUT-11 (28’-0” – 8500 mm)	282” -7150 mm
Bed type	2V & 2 Flat
Bed width	18” -455 mm
Lenght of gape in front of face plate	10”- 250 mm

HEAD STOCK :

Number of spindle speed	8
Range of spindle speed	30 to 250 RPM
Spindle nose dia.	4” -100 mm
Spindle bore	3.1/8” -80 mm
Spindle threads	6 TPI
Spindle morse taper (Inside)	MT – 4

CARRIAGE & COMPOUND :

Cross Slide Dimension	12 -300 mm x 22” -560 mm
Cross slide travel	16” -405 mm
Compound slide dimension	17” -430 mm x 7” -175 mm
Compound slide travel	10” -250 mm
Tool post square	7” -175 mm
Tool shank section	1.1/4” -32 mm x 1.1/4” -32 mm

TAIL STOCK :

Spindle ram diameter	3” -75 mm
Spindle ram travel	10”-250 mm
Spindle ram morse taper	MT -5

THREADS :

Number of threads range in metric	13
Number of threads range in inch	19
Number of pitch range in metric	1 to 6 PITCH
Number of pitch range in inch	2 to 24 TPI
Lead screw diameter	1.3/4” -45 mm
Lead screw threads	2 TPI

Special Features :

Induction harden bed ways.

Bed is made from high quality cast iron & strictly inspected with micro level & straight edge.

Head stock spindle is made from high tensile steel duly hardened & ground.

Apron is totally enclosed oil bath system with lever type arrangement for automatic feeds.

Tail stock spindle is hardened & ground, made from alloy steel.

Meticulous care is taken in selecting the right raw material for every component.

Each & every component is passed through strict quality control.

Machine accuracy is tested as per IS : 1878 (Part – I) 1971.

Chuck back plate, tool post spanner, Centre adapter, Dead centres – 2 nos, Motor Pulley, Change gear set.

Optional Accessories :

Face plate, Steady rest, Follow rest, Carrier plate, Full or Semi Norton gear box, Rear tool post with extended cross slide, Coolant pump with tank & fittings, Taper turning attachment, Machine lamp, Electric Motor, R/f Switch, Motor Vee Belt, Dog chuck, True chuck, Spindle bore (4.1/8” -100mm, 5.1/8” -130mm, 6.1/8” -155mm)

Electrical :

Motor Recommended 7.5 H.P. / 5.5 KW

General Specification
Model	Machine Weight (Approx) Kgs.	Floor Space (Approx) L x W x H (mm)
HI-CUT-1	4500 kgs.	2500 x 1675 x 1550
HI-CUT-2	4800 kgs.	3100 x 1675 x 1550
HI-CUT-3	5200 kgs.	3400 x 1675 x 1550
HI-CUT-4	5600 kgs.	4000 x 1675 x 1550
HI-CUT-5	6000 kgs.	4600 x 1675 x 1550
HI-CUT-6	6400 kgs.	5200 x 1675 x 1550
HI-CUT-7	6800 kgs.	5800 x 1675 x 1550
HI-CUT-8	7200 kgs.	6400 x 1675 x 1550
HI-CUT-9	7600 kgs.	7000 x 1675 x 1550
HI-CUT-10	8000 kgs.	7600 x 1675 x 1550
HI-CUT-11	8500 kgs.	8300 x 1675 x 1550
HI-CUT-12	8500 kgs.	8800 x 1675 x 1550
