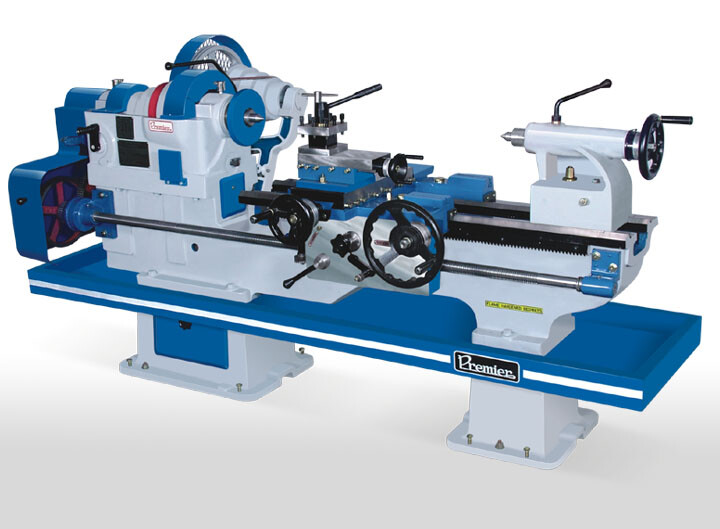

Heavy Duty Lathe Machine

Capacity

	Standard Center height 10” – 250 mm	Optional Center height 12” – 300 mm
Center height	10” -250 mm	12” -300 mm
Swing over bed	19” -480 mm	23” -580 mm
Swing over Cross slide	11” -280 mm	15” -380 mm
Swing in gape	31” -790 mm	35” -890 mm

Bed

Bed Lengh	Admit Between Center
HD-1 (5 ‘-’6” – 1675 mm)	22” – 555 mm
HD-2 (7’ -0” – 2135mm)	39” -1000 mm
HD-3 (9 – ’0” – 2745 mm)	64” -1625 mm
HD-4 (10’ -0” – 3050 mm)	76” -1930 mm
HD-5 (12′ -’0” – 3660 mm)	100” -2540 mm
HD-6 (14’ -0” – 4270 mm)	124” -3150 mm
Bed type	2V & 2 Flat
Bed width	12.3/4” -325 mm
Lenght of gape in front of face plate	8”- 200 mm

Head Stock

Number of spindle speed	8
Range of spindle speed	30 to 490 RPM
Spindle nose dia.	3” -76 mm
Spindle bore	2.1/8” -52 mm
Spindle threads	6 TPI
Spindle morse taper (Inside)	MT – 4

Carriage & Compound

Cross Slide Dimension	8” -200 mm x 18” -455 mm
Cross slide travel	10” -250 mm
Compound slide dimension	10” -250 mm x 4.3/4” -120 mm
Compound slide travel	6” -150 mm
Tool post square	4.3/4” -120 mm
Tool shank section	1” -25 mm x 1” -25 mm

Tail Stock

Spindle ram diameter	2.3/4” -70 mm
Spindle ram travel	8”-200 mm
Spindle ram morse taper	MT -4

Threads

Number of threads range in metric	13
Number of threads range in inch	19
Number of pitch range in metric	1 to 6 PITCH
Number of pitch range in inch	2 to 24 TPI
Lead screw diameter	1.1/2” -38 mm
Lead screw threads	4 TPI

	Induction harden bed ways.
	Bed is made from high quality cast iron & strictly inspected with microlevel & straight edge.
	Head stock spindle is made from high tensile steel duly hardened & ground.
	Apron is totally enclosed oil bath system with lever type arrangement for automatic feeds.
	Tail stock spindle is hardened & ground, made from alloy steel.
	Meticulous care is taken in selecting the right raw material for every component.
	Each & every component is passed through strict quality control.
	Machine accuracy is tested as per IS : 1878 (Part – I) 1971.

Standard Accessories :

Chuck back plate, tool post spanner, Centre adapter, Dead centres – 2 nos, Motor Pulley, Change gear set.

Optional Accessories :

Face plate, Steady rest, Follow rest, Carrier plate, Full or Semi Norton gear box, Rear tool post, Coolant pump with tank & fittings, Taper turning attachment, Machine lamp, Electric Motor, R/f Switch, Motor Vee Belt, Dog chuck, True chuck, Spindle bore (3.1/8” -80mm, 4.1/8” -100mm)

Electrical :

Motor Recommended 3 H.P. / 2.25 KW

General Specification

Model	Machine Weight (Approx) Kgs.	Floor Space (Approx) L x W x H (mm)
HD-1	1200 kgs.	2000 x 1070 x 1450
HD-2	1350 kgs.	2450 x 1070 x 1450
HD-3	1450 kgs.	3000 x 1070 x 1450
HD-4	1600 kgs.	3450 x 1070 x 1450
HD-5	1800 kgs.	4100 x 1070 x 1450
HD-6	2200 kgs.	4750 x 1070 x 1450
